Industrial Rotary Screen

Industrial Rotary Screen

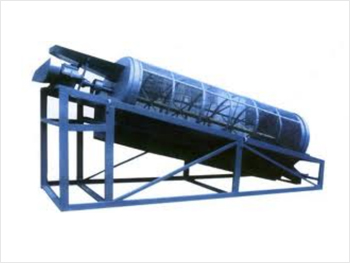

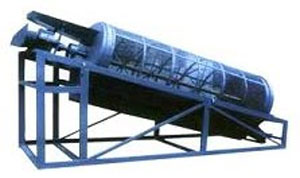

Rotary Screen
Rotary Screen can be used in both application Solid : Solid Separation and Solid - Liquid Separation.Rotary Screens consist of a rotating cylindrical drum supported on four heavy-duty polyurethane / Soft metal support rollers in the case of the three, five and seven module units. The drum is of a tubular space frame made of square tube pipe with perforated screen frame or wire mesh frame. Construction of machine with SS304 Contact parts. Inside cylindrical screen Nishi Techno Sys provides screw feeder and screw for material push forward, in some of models we also provides single motor for feeding as well as for screen rotation. The feed to the screen is evenly distributed Forwarding screw down the length of the drum. Oversize material is retained on the screen cloth with liquid and undersize particles passing through

Rectangular Separator / Industrial screen
This is combination of vibration provides oval stroke, by which process material moves forward, this equipment is having sets of springs. Nishi Techno-Sys develop machine in which we can set angle as per product ion requirement. This screening machine is also having speed controller on requirement basis. We are having models from 1200 mm length to 2500 mm length. As per requirement of customer we are designing vibrating screens with 2 OR 3 Decks. Output of the first screen can be fed as the input to the second screen. The second screen will further grade & separate the material as required. We are offing this machine with Wire Mesh and Perforated screen. From 25 mm to 2 mm.
